Door Projector Lights Removal and Installation


VRAtenza

Recommended Posts

Simple 5-10min job to remove the orginal door puddle/safety light and replace with door projector lights.

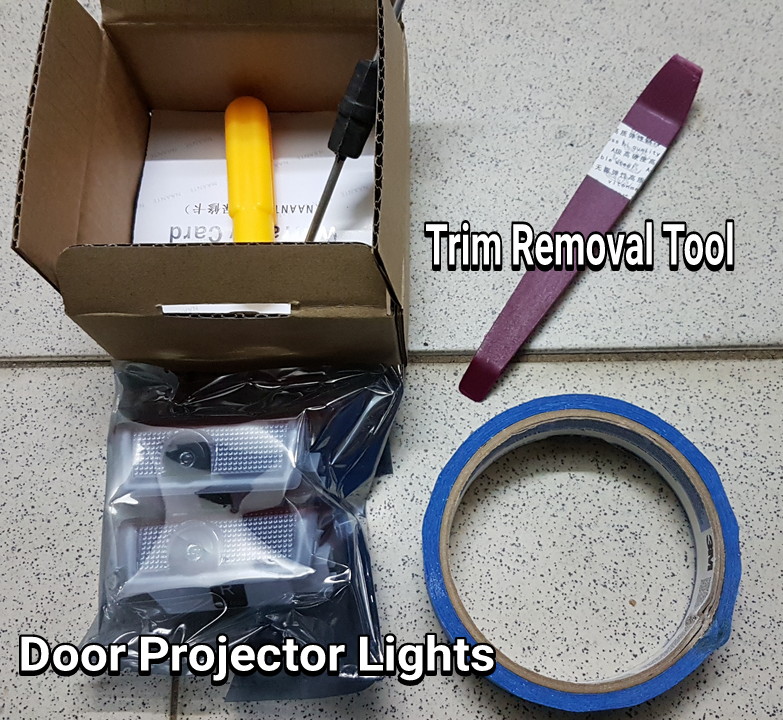

1. Materials and Tools


- Door Projector Light pair

- trim removal tool / plastic pry tool



2. Original door puddle light/safety light..... Undefined murky mess of dim lights

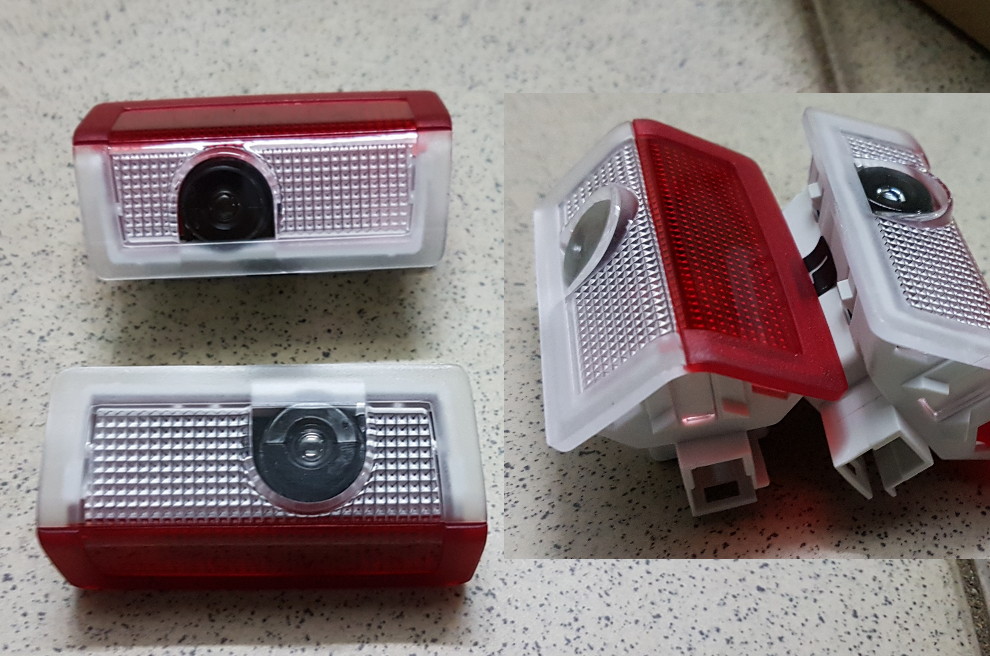

3. The door projector lights. Exact same housing as the original. So is plug and play.

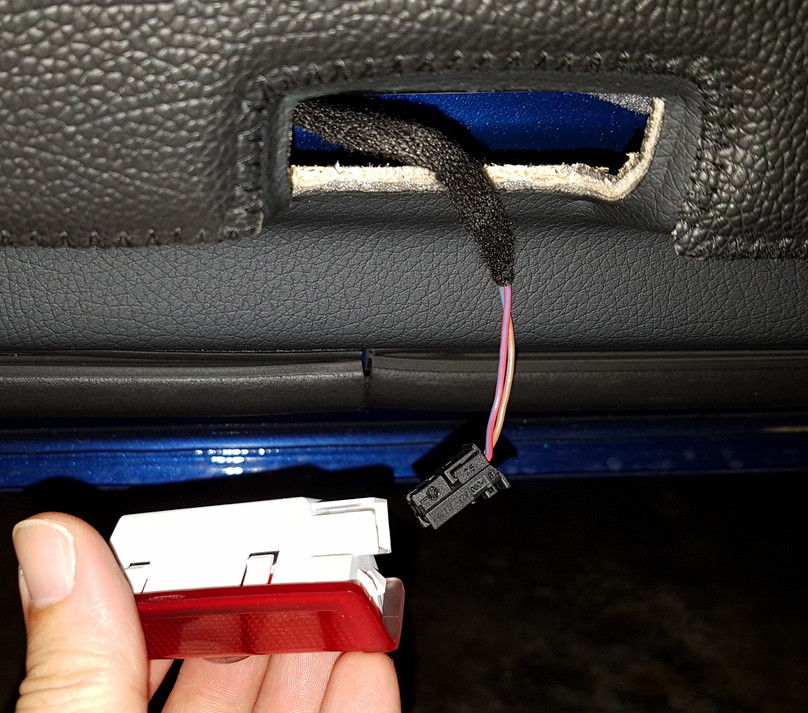

4. Use the trim removal tool, pry out the original light housing as so. Unplug the connector.




5. Installation of the projector lights are simply just connecting up the connector and popping the whole assembly back in.


Link to comment
Share on other sites

  • Replies 3
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Posted Images

32 minutes ago, Josh21 said:

Very cool! This can't be done for the rear doors?

Although the rear doors are exactly the same as the front, due to the position angle of the housing, the projected image will be distorted and partially obstructed. The taobao seller advised against getting for the rear.

The cheaper alternatives (logo design slightly different and not as bright and defined) can fit all 4 all round. You can choose to get those for the rear but personally I find it messy to have 2 different quality sets on a single car.

Link to comment
Share on other sites

37 minutes ago, VRAtenza said:

Although the rear doors are exactly the same as the front, due to the position angle of the housing, the projected image will be distorted and partially obstructed. The taobao seller advised against getting for the rear.

The cheaper alternatives (logo design slightly different and not as bright and defined) can fit all 4 all round. You can choose to get those for the rear but personally I find it messy to have 2 different quality sets on a single car.

Noted. Thanks man!
