GLC SUV Rear Flared Fenders Installation Instructions.

69 posts in this topic

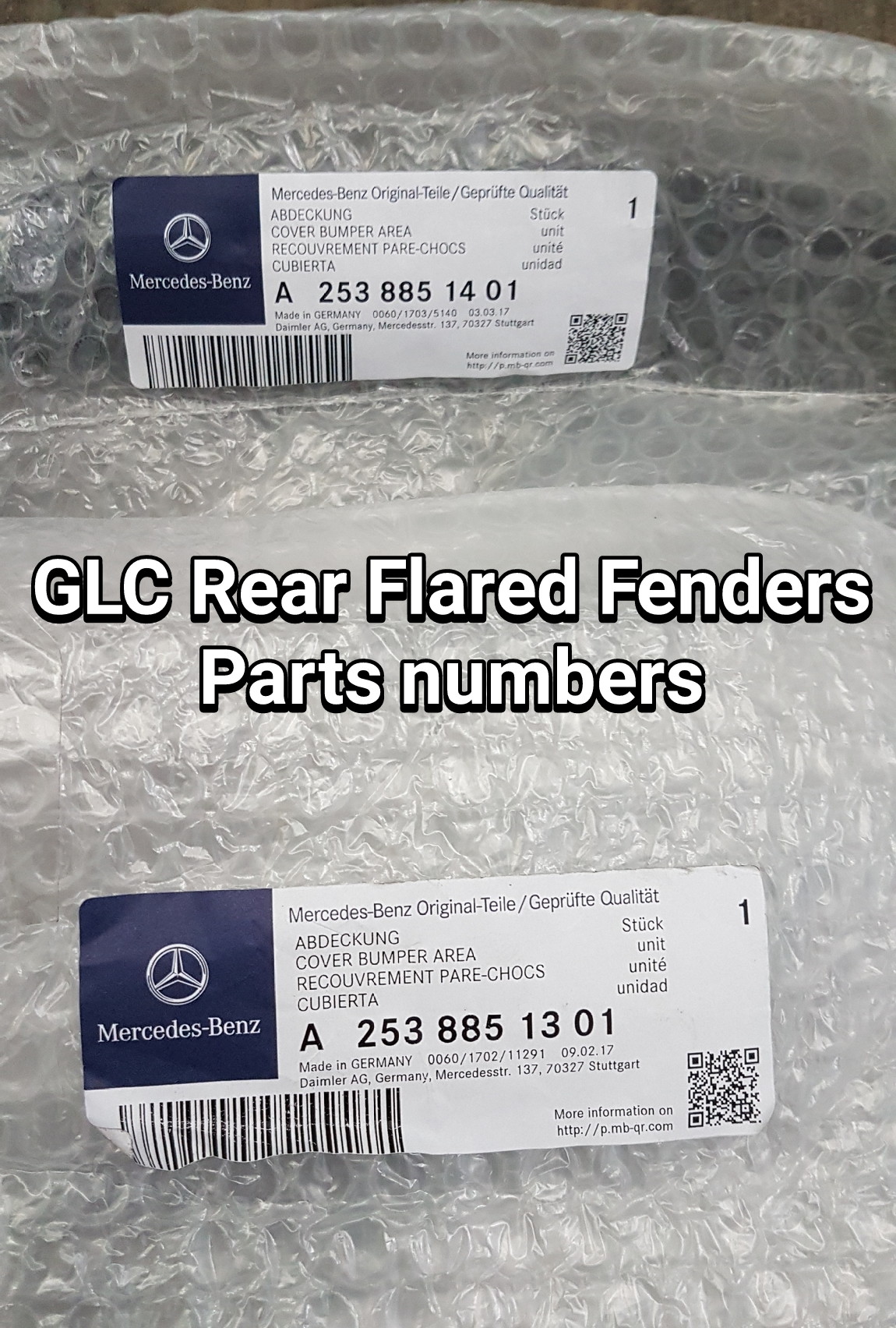

Had always wanted the flared rear fenders look and finally got hold of the parts numbers to order it via  MB parts stockist

Wanted to install it myself so decided to research into how to do it. There are no instructions available online specific for the GLC.

Took me some effort to get hold of 2017 Mercedes-Benz WIS, referenced the instructions and the actual new fender trim I was replacing for locations of the tabs and clips.

Tried the replacement and completed the project within 60mins as I wanted to be as careful as possible so as to not break any tabs. Took some pictures of the process and made into a pictorial instructional video.

Hope those looking to swap out your rear fender trims find this useful!

2 people like this

Share this post


Link to post
Share on other sites

Good job .... Bro!! Excellent video reference.... !!

Share this post


Link to post
Share on other sites
1 hour ago, Johs said:

Bro, good job!

wat is the damage?

your tire size 19"?

Thanks!

About SGD250 w/gst for a set of the replacement fenders, one T-shirt of sweat and 1hr of my time.

Yes, 19" non-staggered.

Share this post


Link to post
Share on other sites
7 hours ago, VRAtenza said:

Thanks!

About SGD250 w/gst for a set of the replacement fenders, one T-shirt of sweat and 1hr of my time.

Yes, 19" non-staggered.

Bro, what is the p/n?

any idea is the front fender available?...the Glc c63 model is diff

Share this post


Link to post
Share on other sites
1 hour ago, Johs said:

Bro, what is the p/n?

any idea is the front fender available?...the Glc c63 model is diff


For the front I don't have the information and also because GLC43 front is the same as the bread and butter GLC like mine.

One issue with the flared fenders is that you will have to push out your wheels to make them fill the extended arches better. I am doing something for the rear.

I compared GLC43 factory AMG 19/ 20 inch staggered rims and I know the rear will have about 30mm of allowance for you to push out the wheels and still fall within what the vehicle is designed for.

For the front, if you put in a flared fender too, you will need to do the same or it looks weird. There lies in the problem. If you mess with the track width of the front, your handling amd steering gets messed up really quickly unless you know exactly how much and what to alter. Some keywords are camber, scrub radius etc

For the rear, since is non steering, the effect is minimal even if you extend the tracts up to a certain limit.

Share this post


Link to post
Share on other sites

Thks for the info...

So u intend to add on a spacer...than u shld check with a reliable Tyre shop for the correct thickness of the spacer. Unless u change your rim to the c43 spec.

My rim spec is 8j x 19 ET32

if my info is correct, factory spec for 19" is 8j x 19 ET38 ( for glc 250 SUV)

hence my rear setup is already quite flush with the tire fender...is 6mm diff ( negative offset)

What is your rim spec?




Share this post


Link to post
Share on other sites
34 minutes ago, Johs said:

Thks for the info...

So u intend to add on a spacer...than u shld check with a reliable Tyre shop for the correct thickness of the spacer. Unless u change your rim to the c43 spec.

My rim spec is 8j x 19 ET32

if my info is correct, factory spec for 19" is 8j x 19 ET38 ( for glc 250 SUV)

hence my rear setup is already quite flush with the tire fender...is 6mm diff ( negative offset)

What is your rim spec?




Yes, mine is the factory 19" AMG non-staggered 8j with ET38.

The GLC Coupe rear is flared fender (same as GLC 43), the 19" AMG rear specs is 8.5j ET20. Front is the same as my non-staggered.

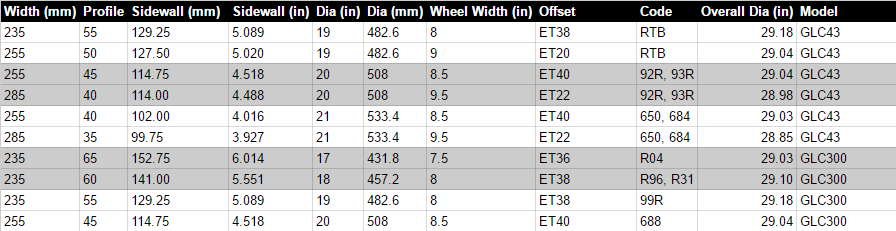

2017glc_wheel_data_b6b82bd51fd62fac7173d142dce502f7123c40bc.png.b523d38cdd3cdcde09a7eec01b4edd34.png

I already got a set of H&R DRA system 25mm shipped in ready to install.

Your existing rim should be very flush with the stock fenders. But if you have flared fenders installed, there will be an extra 25-30mm of arch to fill.

Share this post


Link to post
Share on other sites

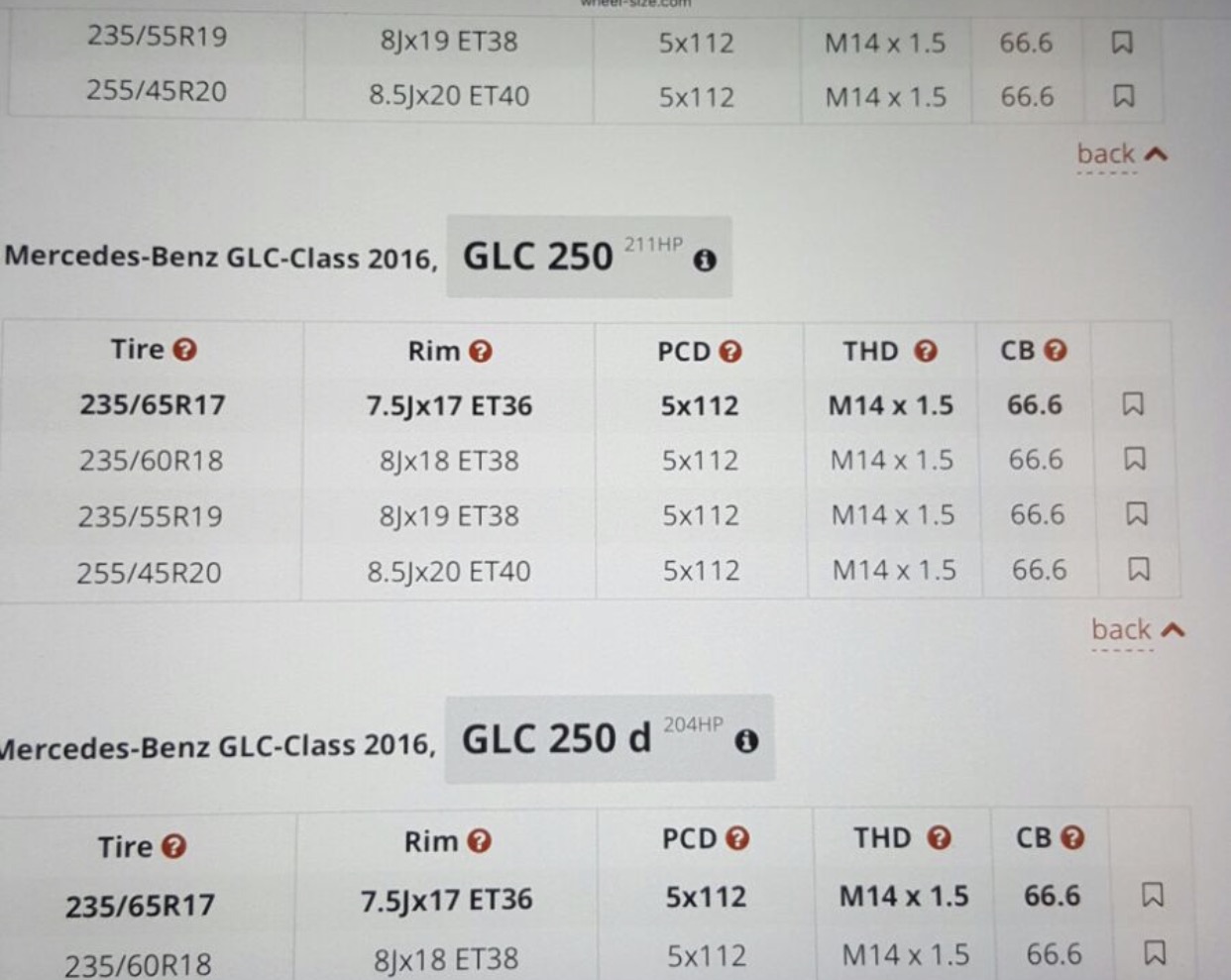

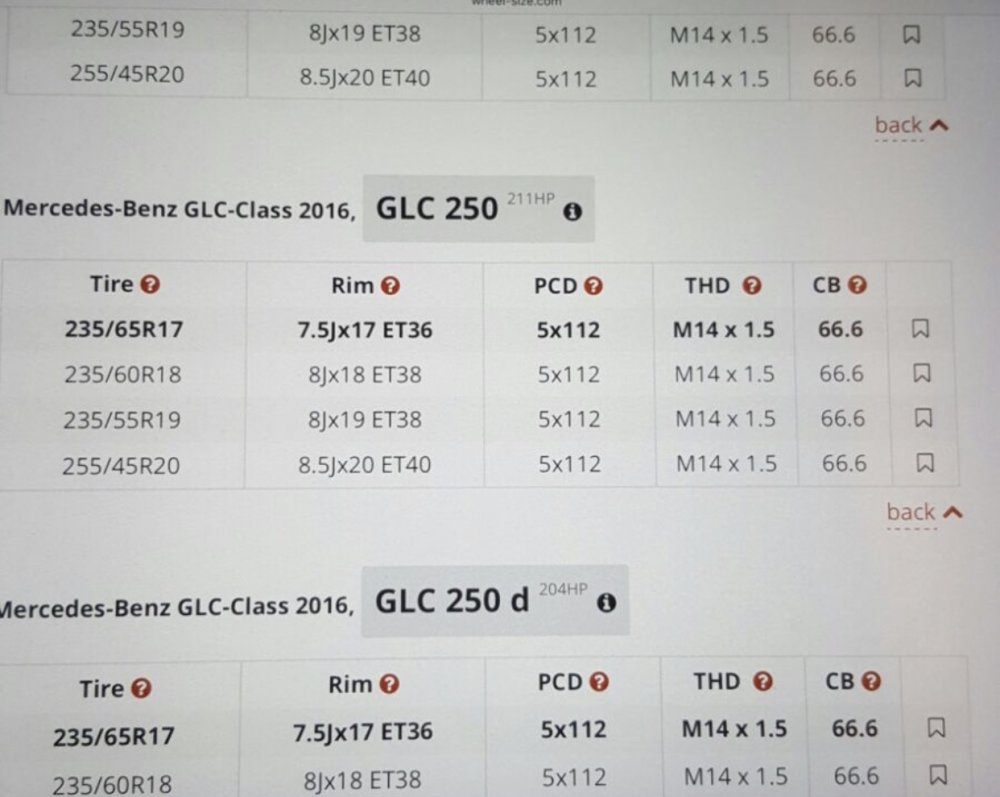

Bro, from the chart stk rim size for c43 on 19" is 9 x ET20. Is tis setup ok for the fender? Does it look awful on it?

my ride size is 8 x ET 32, is less than 1mm diff only wrt the mounting hub.

Share this post


Link to post
Share on other sites
1 minute ago, Johs said:

Bro, from the chart stk rim size for c43 on 19" is 9 x ET20. Is tis setup ok for the fender? Does it look awful on it?

my ride size is 8 x ET 32, is less than 1mm diff only wrt the mounting hub.

You see Mysticryan's GLC coupe pics. His rear is the 19" ET20 rims. His coupe comes standard with flared fenders

Share this post


Link to post
Share on other sites
23 minutes ago, Johs said:

Bro, from the chart stk rim size for c43 on 19" is 9 x ET20. Is tis setup ok for the fender? Does it look awful on it?

my ride size is 8 x ET 32, is less than 1mm diff only wrt the mounting hub.

Hi sorry, just noticed an error I had quoted. The GLC coupe's rear is 9x ET20 (not 8.5 that I had written previous post). So essentially GLC Coupe's staggered 19" are the same as the GLC 43's 19".

Using that as a reference, you can have a visual gauge on how the set of rims will look like with rear fender flare.

For me i could have gone for 30mm spacers but I prefer to keep it conservative with 25mm to try it out. In the future I might change to a set of staggered 19" if i can find in the used market.

Share this post


Link to post
Share on other sites

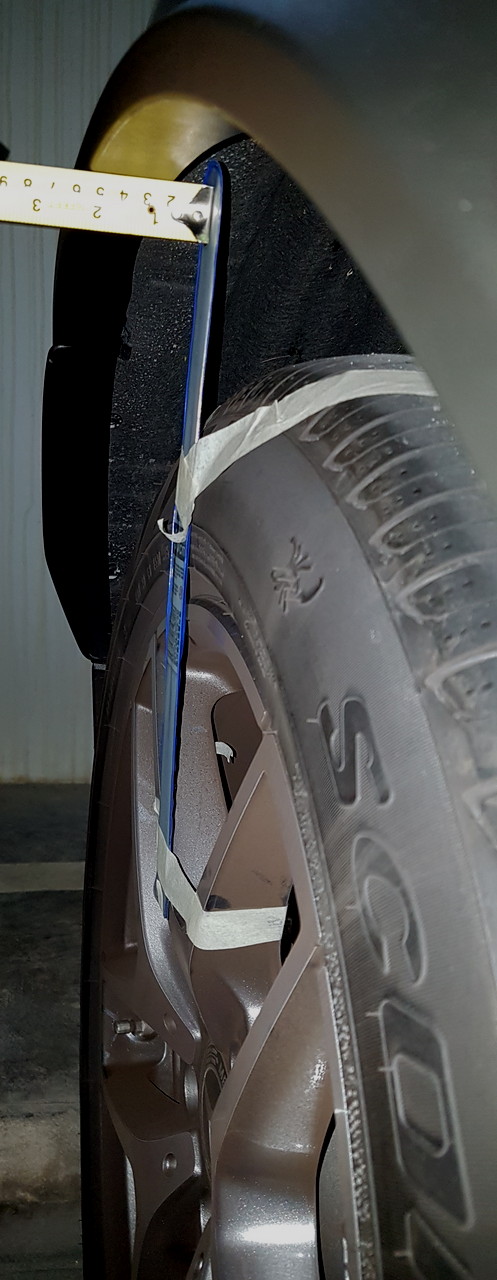

For your reference of the amount of extra protrusion the rear flared fenders will have over stock AMG 19" non-staggered rims.

Share this post


Link to post
Share on other sites

Bro, thks for the pics taken to illustrate. Really appreciate.

Share this post


Link to post
Share on other sites

Bro VRAtenza. Very well done DIY. looks nice... when u push out the rims... will look fierce!

Share this post


Link to post
Share on other sites
On 16/07/2017 at 10:46 PM, mysticryan said:

Bro VRAtenza. Very well done DIY. looks nice... when u push out the rims... will look fierce!

Thanks!

Waiting for my mercedes jack point adaptor and scissors jack I ordered to arrive before my DIY to install the 25mm H&R spacers. Will post up another DIY for spacer installation when it is done.

Share this post


Link to post
Share on other sites

edited first post to embed video link

Share this post


Link to post
Share on other sites
On 04/07/2017 at 0:53 AM, VRAtenza said:

Had always wanted the flared rear fenders look and finally got hold of the parts numbers to order it via  MB parts stockist

Wanted to install it myself so decided to research into how to do it. There are no instructions available online specific for the GLC.

Took me some effort to get hold of 2017 Mercedes-Benz WIS, referenced the instructions and the actual new fender trim I was replacing for locations of the tabs and clips.

Tried the replacement and completed the project within 60mins as I wanted to be as careful as possible so as to not break any tabs. Took some pictures of the process and made into a pictorial instructional video.

Hope those looking to swap out your rear fender trims find this useful!

Bro i am considering to add the flared fender too. Your post is a life saver. May I know which stockist you ordered from? Is yours Coupe or wagon? I am also looking for the diamond grill with 3D star logo. See attached photo. Anyone knows where to get?


Share this post


Link to post
Share on other sites
1 hour ago, Dcky75 said:

Bro i am considering to add the flared fender too. Your post is a life saver. May I know which stockist you ordered from? Is yours Coupe or wagon? I am also looking for the diamond grill with 3D star logo. See attached photo. Anyone knows where to get?


GALLOP AUTOMOTIVE PTE LTD
3 Pemimpin Drive #02-05
Lip Hing Industrial Building
Singapore 576147

Tel: +65 62587203 / 62587204
Fax: +65 62587395

Email: ycyeo@gallopauto.com.sg

Web: www.gallopauto.com



I ordered from them because they can do bank transfer payment without me needing to make a trip down just to order.




Mine is wagon. My front grille is from taobao which I DIY swapped too.

 You can find it at Benzline also. Diffferent pricing though.

Share this post


Link to post
Share on other sites

Bro how is the quality from Taobao? I saw a few supplier but dare not try. Don't know if the fitting good a not. Need to remove front bumper to install the grill?

Share this post


Link to post
Share on other sites
14 minutes ago, Dcky75 said:

Bro how is the quality from Taobao? I saw a few supplier but dare not try. Don't know if the fitting good a not. Need to remove front bumper to install the grill?

Pretty good. Direct fit.

No need to remove bumper but removal of the original grill took a bit of effort due to stiff clips.

If you dun have appetite for risk, better to get original from benzline and let them do the installation.

Share this post


Link to post
Share on other sites
1 hour ago, VRAtenza said:

Pretty good. Direct fit.

No need to remove bumper but removal of the original grill took a bit of effort due to stiff clips.

If you dun have appetite for risk, better to get original from benzline and let them do the installation.



2 hours ago, VRAtenza said:

GALLOP AUTOMOTIVE PTE LTD
3 Pemimpin Drive #02-05
Lip Hing Industrial Building
Singapore 576147

Tel: +65 62587203 / 62587204
Fax: +65 62587395

Email: ycyeo@gallopauto.com.sg

Web: www.gallopauto.com



I ordered from them because they can do bank transfer payment without me needing to make a trip down just to order.




Mine is wagon. My front grille is from taobao which I DIY swapped too.

 You can find it at Benzline also. Diffferent pricing though.

Brilliant Blue also very chio!!!

Share this post


Link to post
Share on other sites
2 hours ago, VRAtenza said:

Pretty good. Direct fit.

No need to remove bumper but removal of the original grill took a bit of effort due to stiff clips.

If you dun have appetite for risk, better to get original from benzline and let them do the installation.

I did enquire with Benzline. They don't bring in the mirror finish 3D logo. Got to use back the stock star. I already have an installer. You mind to share the Taobao supplier? I am also checking out from a supplier from U.K.

Share this post


Link to post
Share on other sites
25 minutes ago, Dcky75 said:

I did enquire with Benzline. They don't bring in the mirror finish 3D logo. Got to use back the stock star. I already have an installer. You mind to share the Taobao supplier? I am also checking out from a supplier from U.K.

Later I PM you the link to the TB seller. My 3D logo is FOC throw in for the grille purchase.

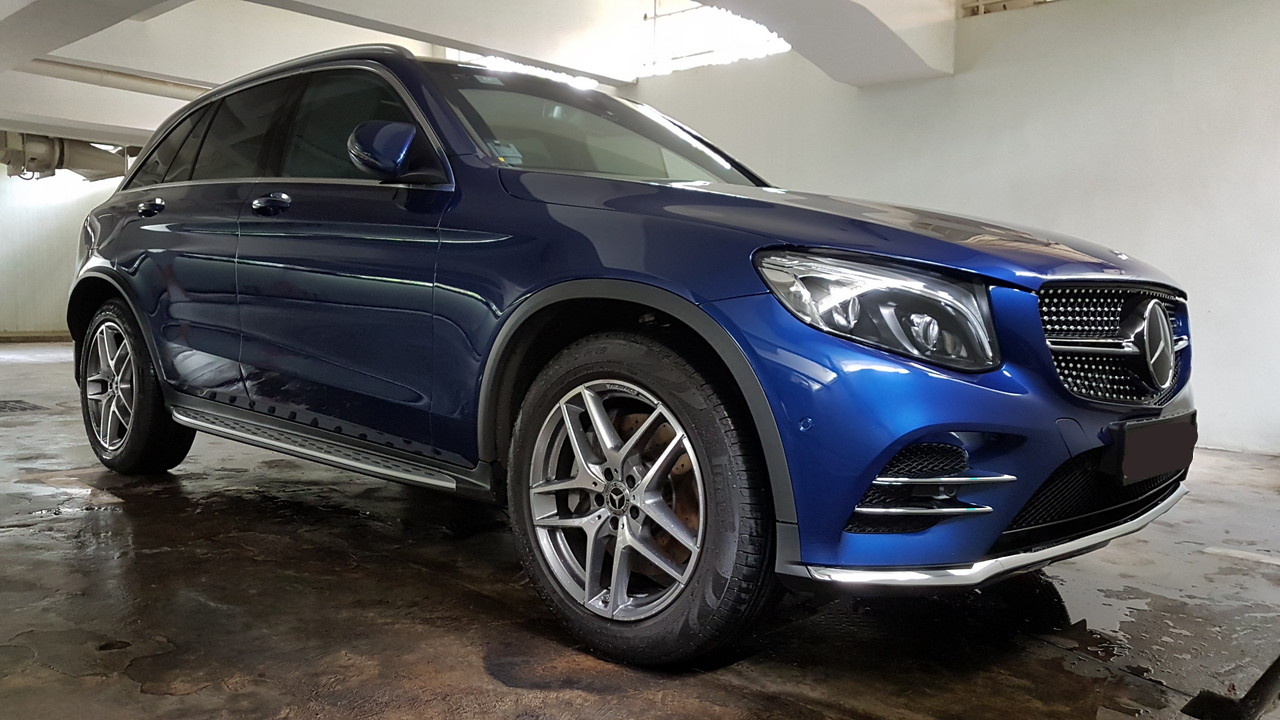

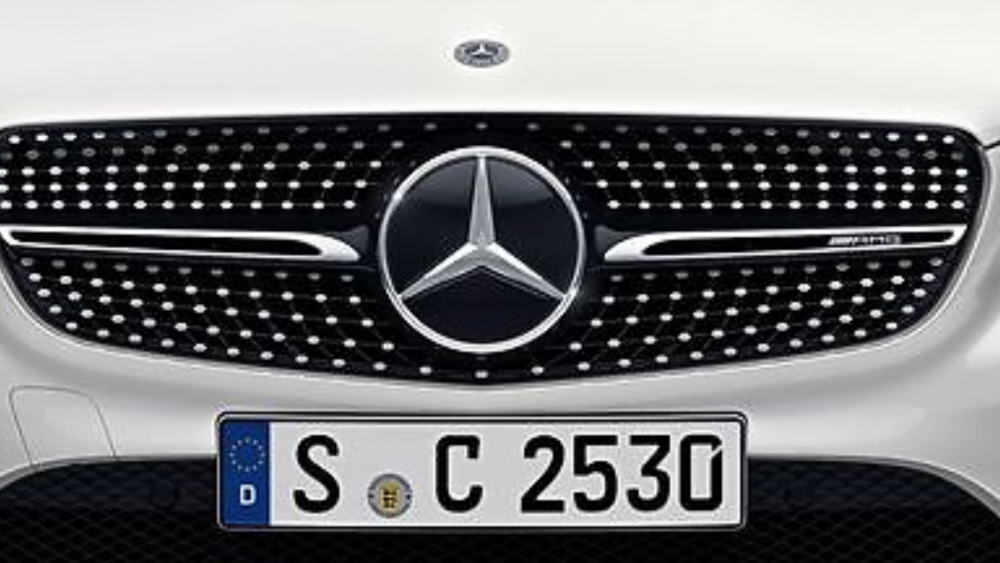

If you want all original parts, can get the stockist to quote you for GLC AMG43 SUV Diamond grille and the mirror finish logo (used for cars with distronic plus as the radar is right behind the logo, thus the mirror finish plastic piece is required in order not to hinder the function).



Share this post


Link to post
Share on other sites
1 hour ago, VRAtenza said:

Later I PM you the link to the TB seller. My 3D logo is FOC throw in for the grille purchase.

If you want all original parts, can get the stockist to quote you for GLC AMG43 SUV Diamond grille and the mirror finish logo (used for cars with distronic plus as the radar is right behind the logo, thus the mirror finish plastic piece is required in order not to hinder the function).



Thx mate. The mirror finish looks original?

Share this post


Link to post
Share on other sites
1 hour ago, Dcky75 said:

Thx mate. The mirror finish looks original?

Erm, have not seen the original mirror finish before, but this one is pretty well made. Good for my standard, or else I would have used the original non-mirror star logo instead.

Share this post


Link to post
Share on other sites
