tanwill

W211 - Power steering fluid

38 posts in this topic

Hi guys, needs some input.

What you guys use for the FL W211 Kompressor power steering fluid ?

Share this post


Link to post
Share on other sites

Thanks CH_OldMerc

Share this post


Link to post
Share on other sites

Wah sibeh confusing just buying the power steering fluid for topup.

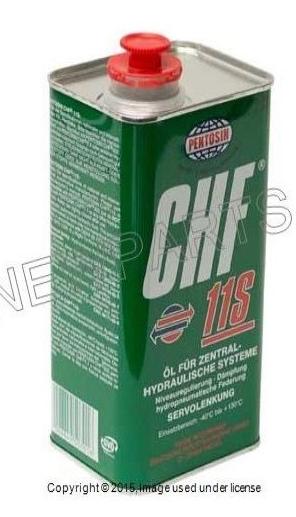

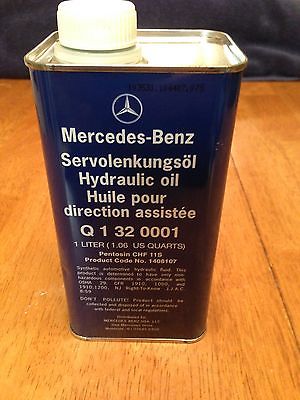

According to various video and forum, W211 Kompressor must use the syn fluid with CHF11s :

steer.JPGOR s-l1600.jpg

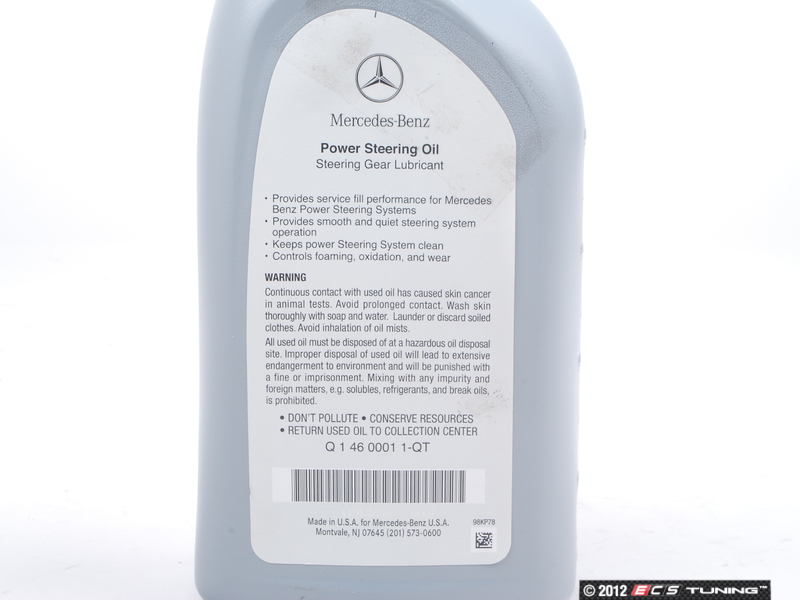

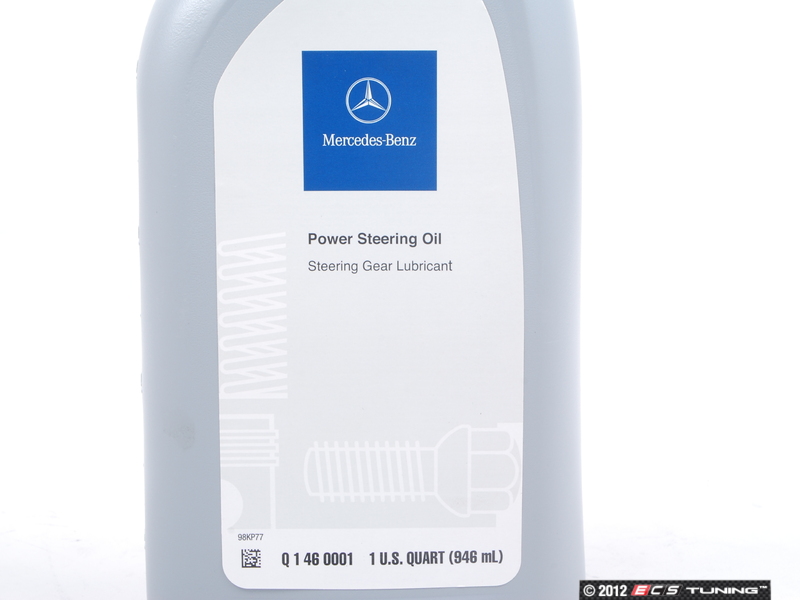

Than some other forum said to use this :





Share this post


Link to post
Share on other sites

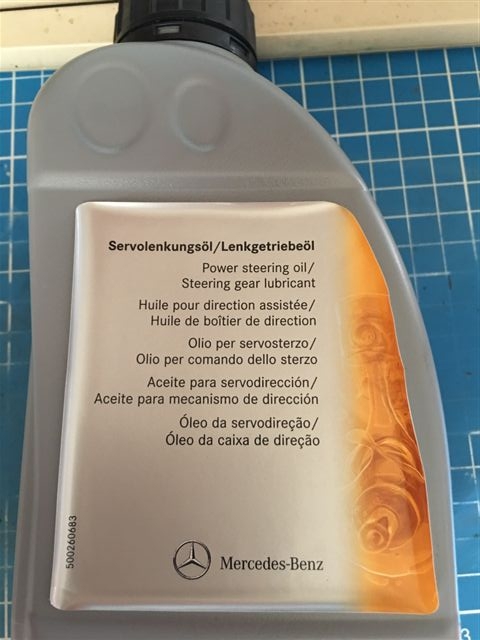

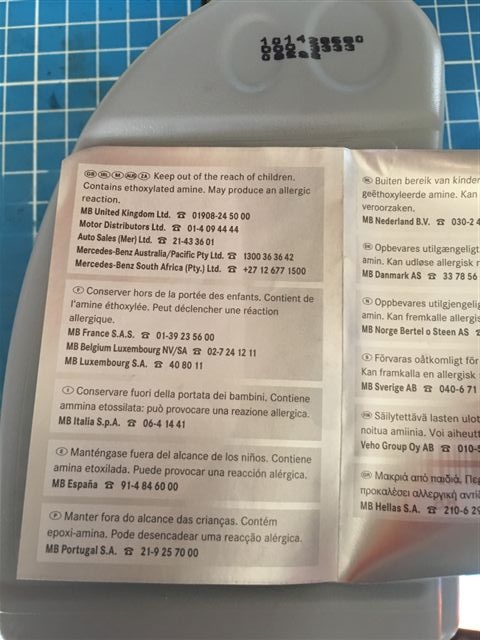

Went to Tye Soon, they only have this :





Share this post


Link to post
Share on other sites

KNN dont know which is which ???

Anyway i only need like 2 table spoon volume. Just buy and top-up.

Share this post


Link to post
Share on other sites

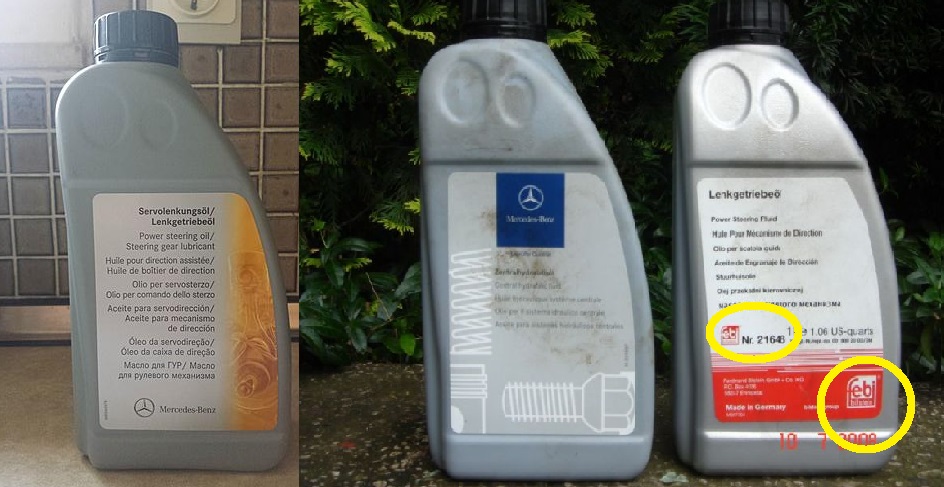

More reading say they are all the same ? Confused.




Share this post


Link to post
Share on other sites

Hi bro tanwill,

I think any or all  of the above could work

See here:

http://www.europarts-motorfactors.com/lubricants-fluids/Steering-Fluids/Mercedes Benz/E Class/E200/1.8/2007/Parts.aspx

the correct specification can be found from this official Mercedes website:

http://bevo.mercedes-benz.com/?language_id=1

Share this post


Link to post
Share on other sites

Thanks again CH_OldMerc.

OK, its now clear. Must use the syn fluid with Pentosin CHF11s (FUCHS).

Also call Tye Soon, they said its new packing. Its Synthetic. Oil colour also different from earlier lot. (previous - Green colour / new - yellow colour).

Learned some thing. Phew.

*never just listen to old mechanic tales (ATF is = power steering). Seems they are not anymore !

Share this post


Link to post
Share on other sites
37 minutes ago, tanwill said:

KNN dont know which is which ???

Anyway i only need like 2 table spoon volume. Just buy and top-up.

Bro,

You needed only 2 table spoons only ...why don't just go your regular workshop and ask for it?

You now purchased 1 big bottle sure got wasted...I think it also cannot keep too long once the cap is opened?

BTW, how much per bottle?

Share this post


Link to post
Share on other sites

Because of the following reason :

1) too far,

2) lastly mechanic want to topup with ATF (i stop him ! I remember reading somewhere its diff for W211),

3) call up Tye Soon, its 500ml - S$11.50 (and its nearer to where i am)

Share this post


Link to post
Share on other sites
14 hours ago, tanwill said:

Because of the following reason :

1) too far,

2) lastly mechanic want to topup with ATF (i stop him ! I remember reading somewhere its diff for W211),

3) call up Tye Soon, its 500ml - S$11.50 (and its nearer to where i am)

Good info.

I wonder if these STP Power Steering Fluid selling in Autobacs is having the same spec as Merc ?


Share this post


Link to post
Share on other sites

Also take a look at this video how to flush the power steering system.

At about 4:38, there is a thick sludge of the old fluid being flush out.

Tempted me to do this flushing for my W211.



Share this post


Link to post
Share on other sites
2 hours ago, iMac said:

So far the info gather is that the W211 needs steering fluid of :

a) synthetic fluid with Pentosin CHF11s grade (dont think the STP is CHF 11s grade).

B) looking at the STP price at $6.95 vs Merc $11.50. Not worth the saving la. Just go buy the Merc one.

--------------------------------------------------------------------------------------------

Good info.

I wonder if these STP Power Steering Fluid selling in Autobacs is having the same spec as Merc ?




Share this post


Link to post
Share on other sites
1 hour ago, iMac said:

Good video ! Yikes ! on the thick sludge. Seems like a good idea to flush out the system in view its been like some 8-9 years !

Maybe a little too messy for my DIY skill..

-------------------------------------------------------------------------

Also take a look at this video how to flush the power steering system.

At about 4:38, there is a thick sludge of the old fluid being flush out.

Tempted me to do this flushing for my W211.





Share this post


Link to post
Share on other sites

@tanwill:

Have you changed or know any workshop who perform this flushing of power steering oil?

Feel that my E200 need it...:nurse:

Share this post


Link to post
Share on other sites

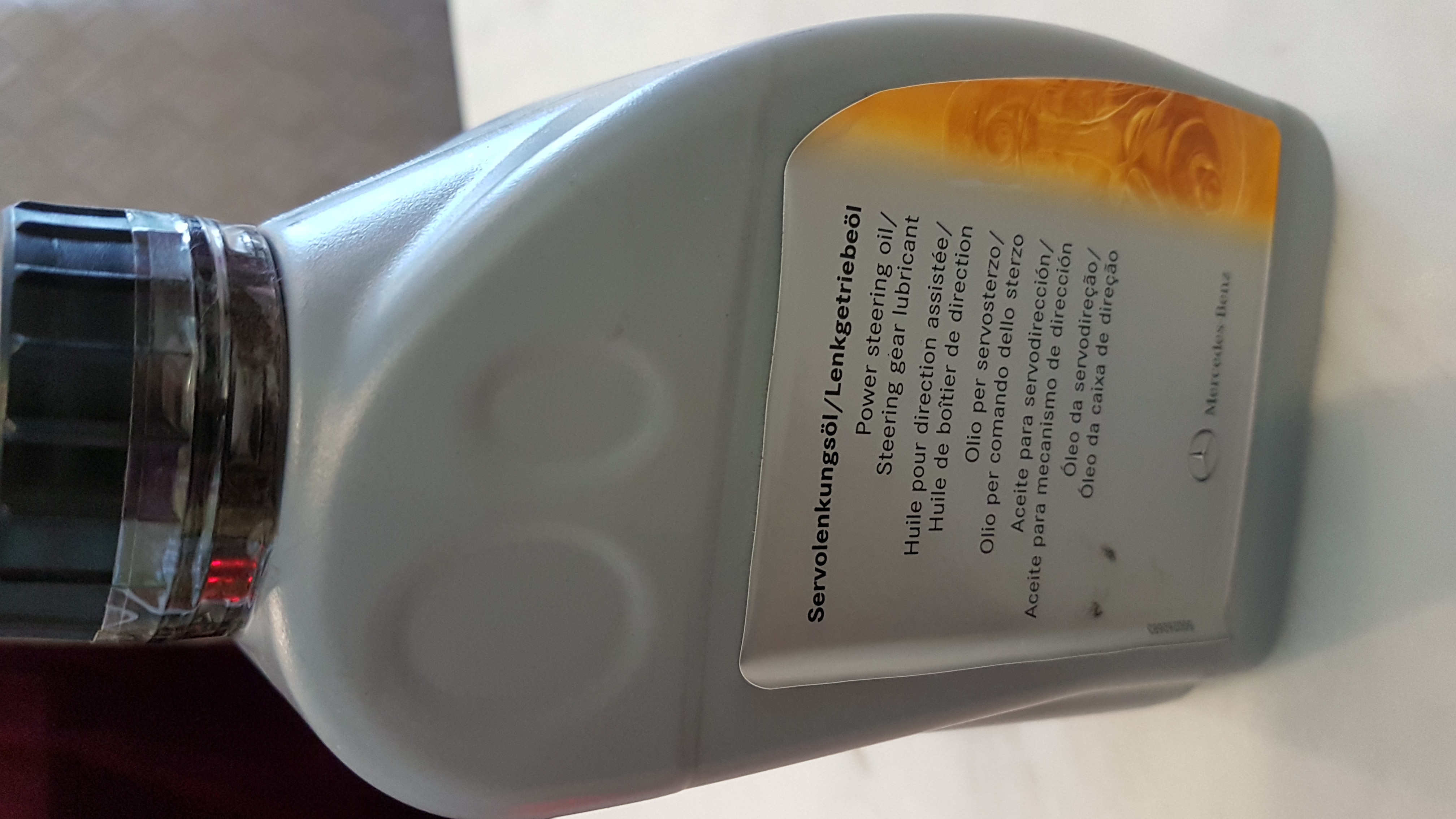

My power steering giving grinding noise over past few days during cold start up. i reckon its time to top up power steering fluid n so went to Tye Soon this morning to buy the same one as bro Tanwill did.

However, after payment and when I collect it, I read on bottle that it is following MB sheet 236 3 ???

From earlier post, I always thought the correct one would be MB sheet 345 ??? Synthetic type (Pentosin CHF 11S)?? Now again is different?

Did a search somewhere in mbworld or benzworld forum and realize for Mercedes Benz model that :

a) Power steering pump using engine serpentine belt drive die die have to use MB sheet 236.3 specified power steering fluid.

B)  Power steering that is driven via electro-Hydraulic setup will have to use MB sheet 345 specified power steering fluid.

So, may I confirm our facelift W211 is (a) or (b)? My engineer instinct is telling me (a).

Mine is E230 and shouldn't be different from other W211 models. I can also confirm power steering pump is driven by the main engine belt alongside with radiator fan & aircon compressor.

Lol. KNN now i know no wonder it is so confusing...Lol

Better make sure before I start pouring it into my power steering pump reservoir. Haha

Share this post


Link to post
Share on other sites

So it is quite certain MB Sheet 236.3 is the correct P.S. fluid.

But then again when you look up Bevo for MB sheet 345,

http://bevo.mercedes-benz.com/bevolistenmain.php?navigation_path=bevolisten&language_id=1&blatt=345.0&content_action=show&mark=hydraulic&suchbegriff=hydraulic

Model 211 is quoted ok wor ??

So KNN, which is the correct one ???

Share this post


Link to post
Share on other sites
4 hours ago, CH_OldMerc said:

So it is quite certain MB Sheet 236.3 is the correct P.S. fluid.

But then again when you look up Bevo for MB sheet 345,

http://bevo.mercedes-benz.com/bevolistenmain.php?navigation_path=bevolisten&language_id=1&blatt=345.0&content_action=show&mark=hydraulic&suchbegriff=hydraulic

Model 211 is quoted ok wor ??

So KNN, which is the correct one ???

Bro,

Best to check back with C&C.

W211 has many model...including CDI with might be using different type of power steering motor. (the video above is E280-CDI)

One of the different between both type of fluid is the thickness.

Share this post


Link to post
Share on other sites

Thanks bro iMac,

Didn't bother to call C&C. Car past 10years now and don't suppose they will entertain you anymore.

Anyway. I already pour 2 tablespoon this morning. Haha.

And viola!, immediately no more noise. But jin wasted.

One big bottle of about 480ml still left.

Sealed up with tape and wrap over vacumm seal  bag.

Any bro need, pls PM me ok?

Cheers!



1 person likes this

Share this post


Link to post
Share on other sites

Bro,

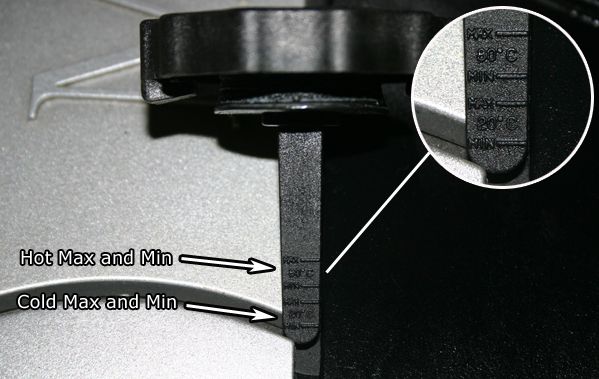

Can advise what is the marking on the dipstick before and after the 2 tablespoons?

Mine fluid level is currently on the lowest marking already.

ps dipstick 2.jpg

Share this post


Link to post
Share on other sites

Mine same same at lowest level (same as yours) during this morning before start the car.

I pour two plastic table spoon which shld be about 20ml+.

Did not check level thereafter as engine was hot. Mine is V6 got the air intake hose blocking near the PS reservoir. Will recheck tomorrow morning before start up and inform.

But I reckon it shld have solve the problem since no more grinding noise. Haha.

Share this post


Link to post
Share on other sites
1 hour ago, CH_OldMerc said:

Mine same same at lowest level (same as yours) during this morning before start the car.

I pour two plastic table spoon which shld be about 20ml+.

Did not check level thereafter as engine was hot. Mine is V6 got the air intake hose blocking near the PS reservoir. Will recheck tomorrow morning before start up and inform.

But I reckon it shld have solve the problem since no more grinding noise. Haha.

Hmmm....if 2 tablespoon enough to get rid all the grinding noise.

Imagine if you do a complete flushing and renew the steering fluid.:devil:



Share this post


Link to post
Share on other sites
